F_S-1WR3系列

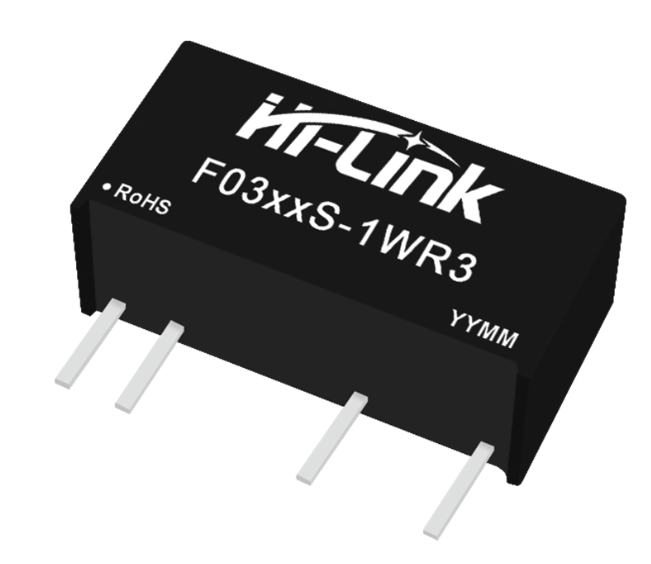

F_S-1WR3系列一是我司为客户提供小体积、高效率的DC/DC微小功率模块电源,定电压输入,隔离非稳压,单路输出。该系列产品是专门针对板上电源系统中需要产生一组与输入电源隔离的电压的应用场合而设计的。该产品适用于: 输入电源的电压比较稳定(电压变化范围士10%Vin); 输入输出之间要求隔离(隔离电压≤3000VDC); 对输出电压稳定度要求不高; 典型应用:纯数字电路场合，一般低频模拟电路场合，继电器驱动电路，数据交换电路场合等。
Product Features:
特点:定电压输入，隔离非稳压输出 1W隔离电压:3000VDC空载功耗低:0.025W(TyP.)效率:高达 90%工作环境温度:-40C~+85°C无故障时间 MTBF>350万小时(3500000Hrs)输出短路保护:可持续短路保护，自动恢复小型 SIP 封装，塑料外壳国际标准引脚方式纹波/噪声(20MHz 带宽):30mVp-p(TyP.)
| Model Title | Power (W) |
Input Voltage (VAC) |
Input Voltage (VDC) |
Output Voltage (VDC) |
Output Current (mA) |
Isolation Voltage (mA) |
Packaging Form | Package size (mm) |
Data Download (3D/PCB封装库/ Schematic Diagram Library) |
Certification/Standard | Technology Manual |
Sample Apply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F0303S-1WR3
|
1 | 2.9700-3.6300 | 3.3 | 19.50x6.0x10.0 |
|
|
 |
|||||
|
F0305S-1WR3
|
1 | 2.9700-3.6300 | 5 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0312S-1WR3
|
1 | 2.9700-3.6300 | 12 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0503S-1WR3
|
1 | 4.5000-5.5000 | 3.3 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0505S-1WR3
|
1 | 4.5000-5.5000 | 5 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0509S-1WR3
|
1 | 4.5000-5.5000 | 9 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0512S-1WR3
|
1 | 4.5000-5.5000 | 12 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0515S-1WR3
|
1 | 4.5000-5.5000 | 15 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F0524S-1WR3
|
1 | 4.5000-5.5000 | 24 | 19.50x6.0x10.0 |
|
|
|
|||||
|
F1203S-1WR3
|
1 | 10.8000-13.2000 | 3.3 | 19.50x6.0x10.0 |
|
|
|
