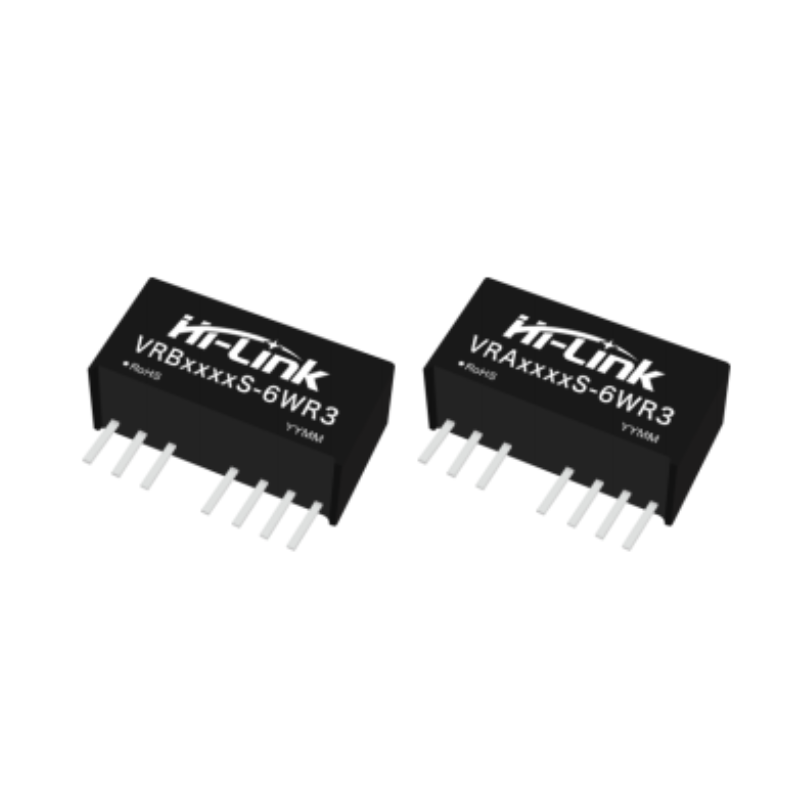

VRB_S_6WR3系列
VRB_S-6WR3 &URA_S-6WR3 系列产品是 2:1 输入，常规电压输出的隔离 6W DC-DC 产品。该产品为较小体积 SIP-8 的塑料引脚封装，较高的效率，满足–40℃ to +85℃工作温度，并且具有远程遥控和可持续短路保护功能。较小的尺 寸和优良的成本设计，使得该变换器成为在通信设备、仪器仪表和工业电子应用中的理想解决方案。
Product Features:
超小型 SIP8 封装超宽输入电压范围:2:1工作温度范围:-40℃ to +85℃隔离电压 1500VDC低纹波噪声 短路保护(自恢复)空载功耗低至 0.12W输入欠压保护，输出短路、过流保护
| Model Title | Power (W) |
Input Voltage (VAC) |
Input Voltage (VDC) |
Output Voltage (VDC) |
Output Current (mA) |
Isolation Voltage (mA) |
Packaging Form | Package size (mm) |
Data Download (3D/PCB封装库/ Schematic Diagram Library) |
Certification/Standard | Technology Manual |
Sample Apply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VRB1203S-6WR3
|
6 | 9.0000-18.0000 | 3.3 | 22.0*9.5*12.0 |
|
|
 |
|||||
|
VRB1205S-6WR3
|
6 | 9.0000-18.0000 | 5 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRB1209S-6WR3
|
6 | 9.0000-18.0000 | 9 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRB1212S-6WR3
|
6 | 9.0000-18.0000 | 12 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRB1215S-6WR3
|
6 | 9.0000-18.0000 | 15 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRB1224S-6WR3
|
6 | 9.0000-18.0000 | 24 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRA1203S-6WR3
|
6 | 9.0000-18.0000 | 3.3 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRA1205S-6WR3
|
6 | 9.0000-18.0000 | 5 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRA1209S-6WR3
|
6 | 9.0000-18.0000 | 9 | 22.0*9.5*12.0 |
|
|
|
|||||
|
VRA1212S-6WR3
|
6 | 9.0000-18.0000 | 12 | 22.0*9.5*12.0 |
|
|
|
